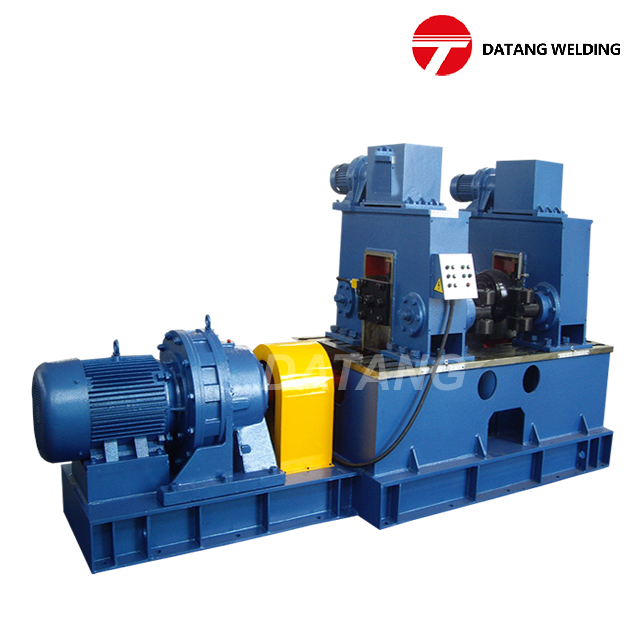

This machine is specially used for the H-beam flange distortion straightening, which has feature of easy operating. High efficiency, reliable working etc.
Model | HYJ-800 |
Flange width(mm) | 200-800 |
Flange thickness(mm) | ≤40 |
Web plate minimum height(mm) | 350 |
Material | Q235A |
Straightening speed(mm/min) | 18000 |
Power(kw) | 25 |
Size(mm) | 3500*1500*1700 |
Voltage | 380V-50HZ-3PH |
